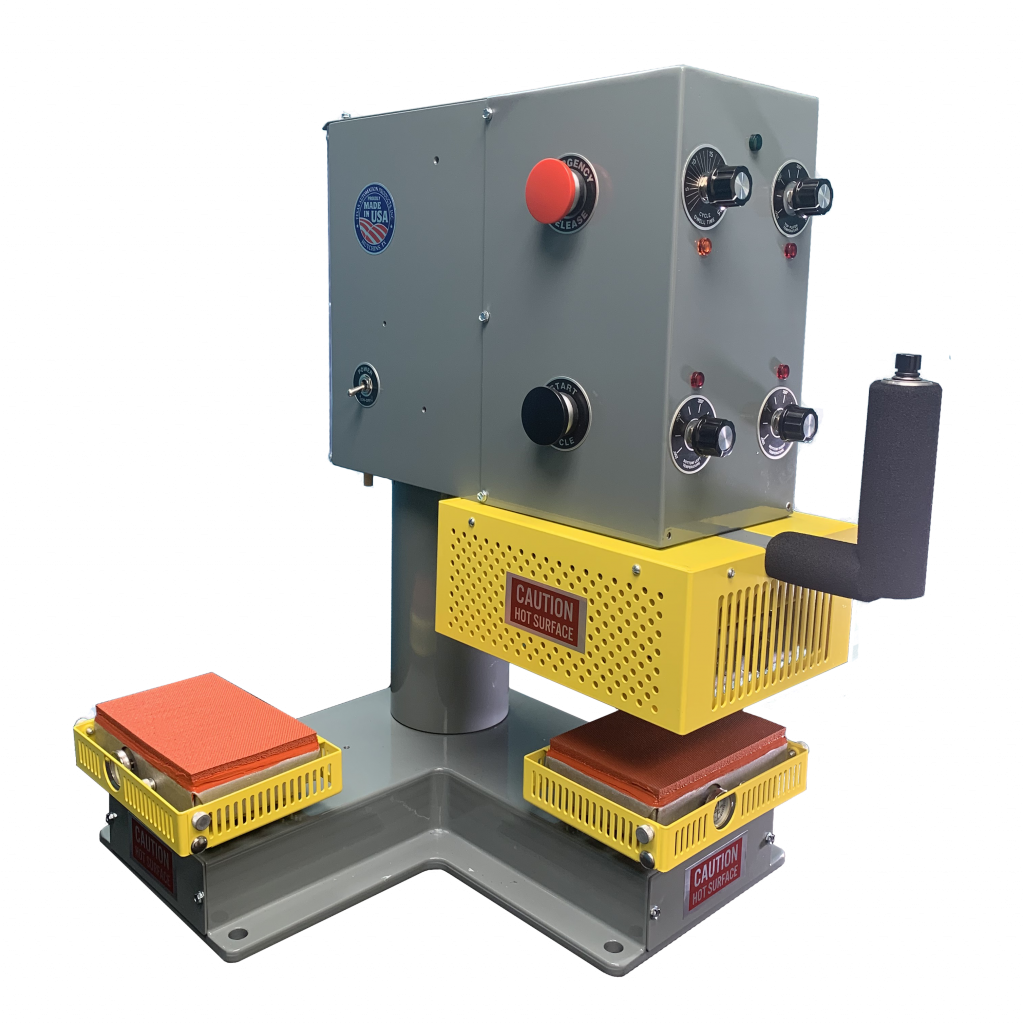

ES 40 Series - Analog Heat Seal Machines - Swivel Head
Options:
  • Platen Sizes:  2"x 4",       3"x 5", 4"x 6", 5"x 6", and 3-¼" x 5" Anvil
  • Custom Platen Sizes Available
  • Footswitch Assembly
  • Garment Tray
  • Mobil Air Cart
  • Ergo Table
Features:
  • Heating indicator Light for Top and Bottom Patens
  • Machine will cycle ONLY when Top Platen is in position directly over a Bottom Platen
  • Red "Emergency Release" Pushbutton is located on the front of the machine
  • Solid State Automatic Reset Timer is adjustable from 1 to 25 seconds
  • Solid State Temperature control Board assure accurate and consistent platen temperature adjustable from 250º to 450º F
  • Teflon Covers & 3/8" thick Sponge Silicone Pads -  Standard
Product Manual (download)

ES 40:     220/240 VAC 1 Phase,  top and bottom independently controlled heat

ES 41:     220/240 VAC 1 Phase, top heat only

ES 42:     110/120 VAC 1 Phase, top and bottom independently controlled heat

ES 43:     110/120 VAC 1 Phase top heat only


No downloads currently available
